DIGICOMFADER

Story

To realize our vision of “more people enjoying sound more easily,” we developed the Digicom Fader. No matter how advanced the equipment is, if the operation is complex and difficult to use, its value cannot be fully realized. Leveraging our expertise in simplyfying operations, we provide audio equipment that anyone can handle with ease.
Our guiding principle at Digicom is “Make everything simpler.” By offering intuitive and accessible products that do not require complex operations, we aim to expand and enhance the enjoyment of sound for more people with the Digicom Fader.

DIGICOM FADER

fader

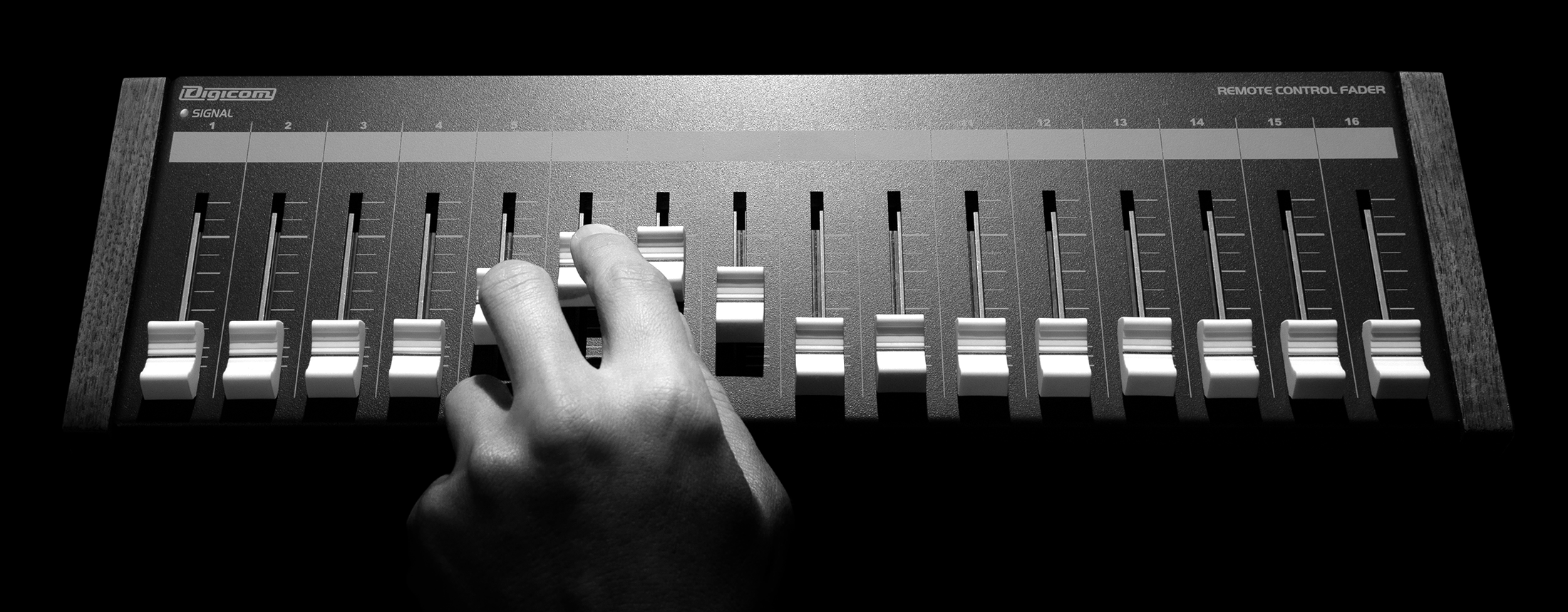

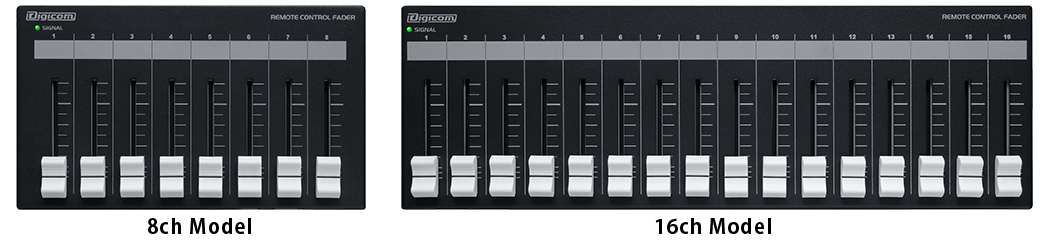

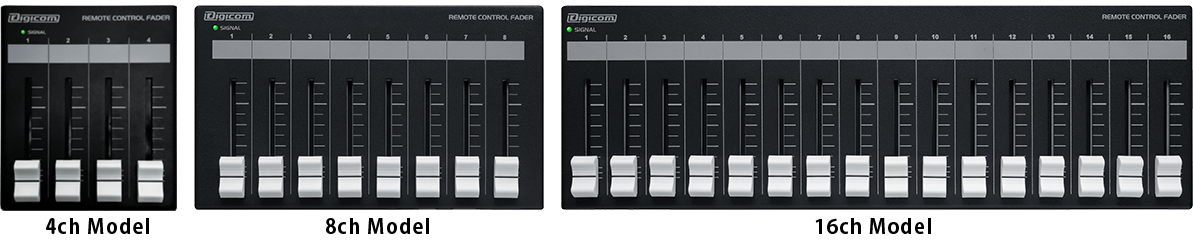

This volume controller is designed for installation in a variety of facilities and controls some of the mixing functions of various DSPs. We offer two models: 8-channel and 16-channel. It enables control of one DSP from multiple Digicom Fader units via a network switch.

*Please note that the maximum number of connectable units varies based on the DSP.
For details regarding the allowable number, please refer to page 3.

Feature

  • ● Wide Variety of Options
  • Compatible with various DSPs, providing flexibility for users.
  • ● Reliable Connectivity
  • Even if communication issues arise with the tablet, it can seamlessly work in conjunction with the main unit.
  • ● Enhanced Operability
  • Utilizes the “tactile sensation,” which is difficult to achieve with a tablet.
  • ● Simple Design
  • Features a structure that excludes ON/OFF switches and setting buttons for ease of use.
  • ● Durable Construction
  • More resilient compared to traditional motorized faders.
  • ● Simultaneous Control
  • Ability to adjust multiple volumes at once during troubleshooting or emergencies.

Examples of Installation Locations

P
ublic Space
  • ◾Lecture room
    ◾Gymnasium
    ◾Conference room
  • ◾Community center
    ◾House of worship
R
estaurant
  • ◾Bar
    ◾Live music club
S
alon, and more
  • ◾Hair salon
    ◾Fitness club
    ◾Boutique

CorrespondingDSP

Audio-Technica_LF08AT(8ch Model)_LF16AT(16ch Model)
Bose_LF08C(8ch Model)_LF16C(16ch Model)
BSS AUDIO_LF08BLU(8ch Model)_LF16BLU(16ch Model)
TASCAM_LF08MX(8ch Model)_LF16MX(16ch Model)
YAMAHA_LF08D2(8ch Model)_LF16D2(16ch Model)
YAMAHA_LF08M(8ch Model)_LF16M(16ch Model)
QSC_LF08Q(8ch Model)_LF16Q(16ch Model)
Biamp Systems_LF08B(8ch Model)_LF16B(16ch Model)
ClearOne_LF08CP(8ch Model)
XILICA_LF08S(8ch Model)_LF16S(16ch Model)

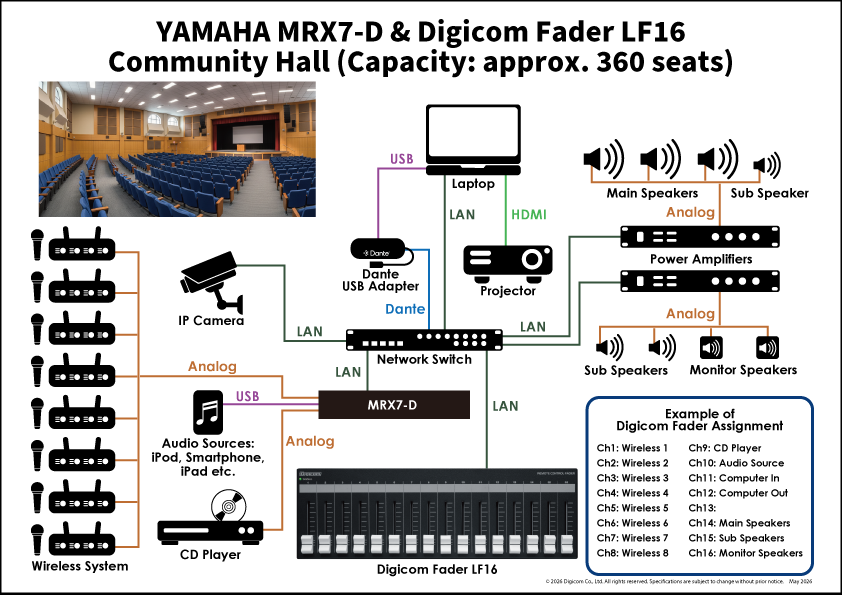

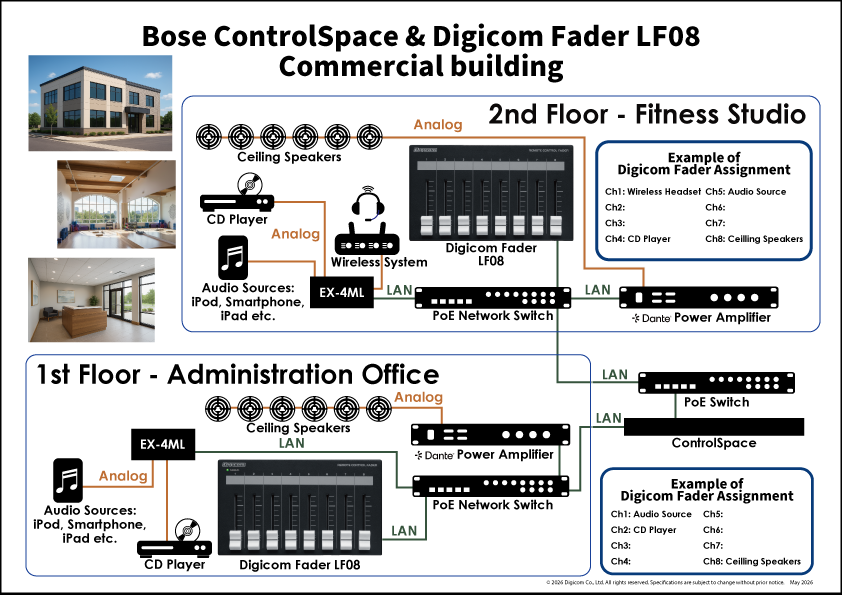

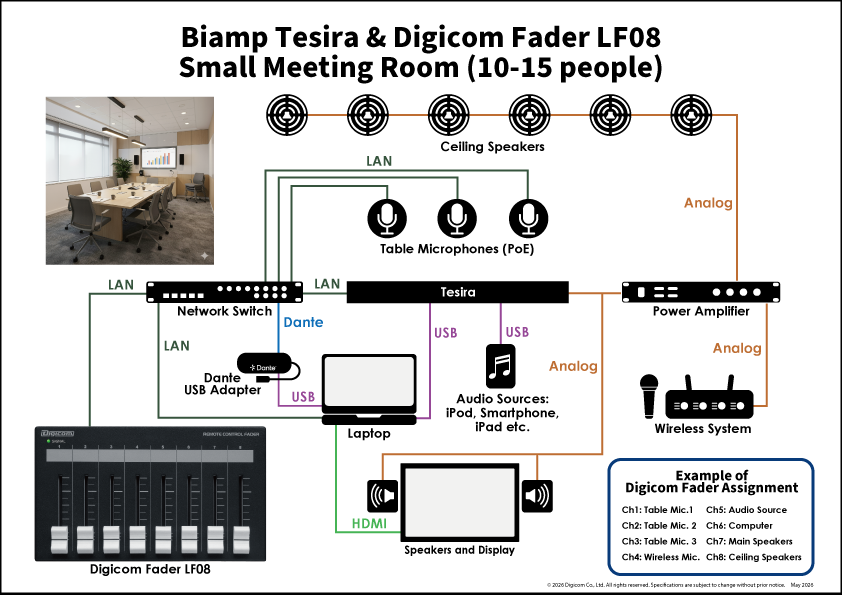

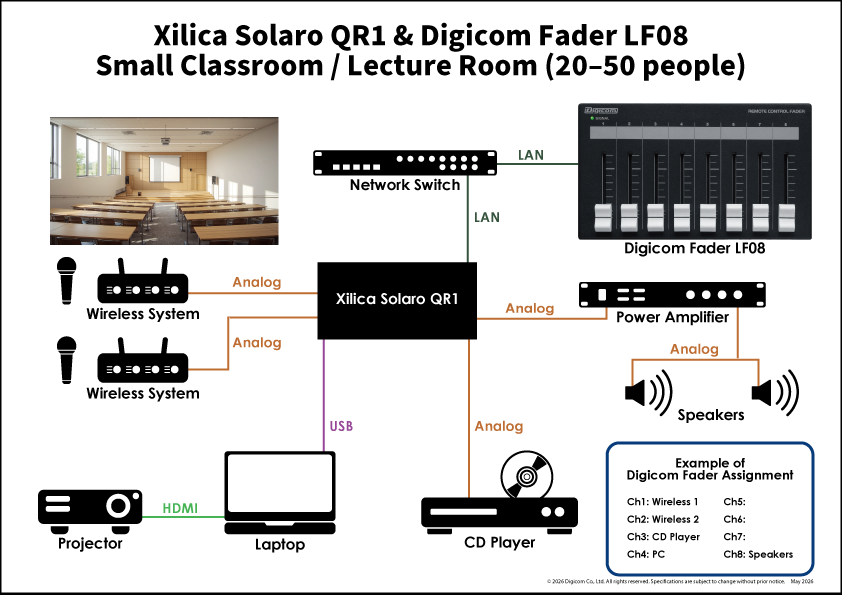

Connection Example

1

Basic Connection Example

After completing the setup, audio professionals can seamlessly adjust volume levels by connecting the Digicom Fader to the DSP using a LAN cable.

LAN cable (up to 328 ft/100 m)

After completing the setup, audio professionals can seamlessly adjust volume levels by connecting the Digicom Fader to the DSP using a LAN cable.

LAN cable (up to 328 ft/100 m)

2

Connection Example for Multiple Units

When connecting multiple Digicom Fader units to a single DSP, it is essential to configure an IP address for each unit.
This configuration can be easily managed through a web browser on a computer.

When connecting multiple Digicom Fader units to a single DSP, it is essential to configure an IP address for each unit.
This configuration can be easily managed through a web browser on a computer.

Maximum Number of Devices That Can Be Connected to the DSP

  • Up to 4 Devices
  • LF-C, LF-Q, LF-B, LF-M, LF-AT, LF-S, LF-D2
  • Up to 2 Devices
  • LF-BLU
  • Single Device Only
  • LF-MX, LF-CP

Details

  • Connector
  • RJ45
  • Communication Protocol
  • TCP
  • Ethernet Standards
  • 10/100BASE-T
  • Default IP Address
  • 192.168.0.201/24 (LF-C), 192.168.33.168/24 (LF-AT), 192.168.0.168/24 (other devices)
  • Power Supply Adapter
  • 9VDC/2.0A, 100V-240VAC, 50Hz/60Hz, center-positive polarity or equivalent recommended by Digicom.
  • Power Comsumption (Power Supply Voltage)
  • 3W (9V/0.3A)
  • Included Accessories
  • AC adapter, Rack mount bracket, Rubber feet
  • Finish
  • Satin semi-glossy black

Dimensions

  • 8ch Model
  • W8.9 × D5.2 × H1.5 in (W225.0 × D132.0 × H36.0 mm)
  • 16ch Model
  • W16.2 × D5.2 × H1.5 in (W410.0 × D132.0 × H36.0 mm)
  • 8ch Model (with Rack mount bracket)
  • W19.0 × D5.5 × H1.5 in (W482.6 × D133.4 × H36.0 mm)
  • 16ch Model (with Rack mount bracket)
  • W19.0 × D5.5 × H1.5 in (W482.6 × D133.4 × H36.0 mm)

Net Weight

  • 8ch Model
  • 2.70 lb (1.2kg)
  • 16ch Model
  • 4.70 lb (2.1kg)
  • 8ch Model (with Rack mount bracket)
  • 4.85 lb (2.2kg)
  • 16ch Model (with Rack mount bracket)
  • 5.95 lb (2.7kg)

FAQ

Q1
Can I change the IP addresses of the DSP and the fader?
A
For changing the IP of the DSP, please refer to the user manual for each DSP .
The IP addresses for the fader and the remote control destination can be changed through a computer.
Q2
Does Digicom Fader have certification?
A
Yes, Digicom Fader has FCC and UL certifications for both the 8-channel and 16-channel models.
Q3
What is the purpose of the M3 screw hole on the rear panel located above the USB port?
A
The M3 screw hole can be used flexibly as needed and is installing a cable retention bracket for the AC adapter.
Q4
How can I change the fader cables that come out from the top of the unit to exit from the back when the fader is mounted in a rack?
A
By removing the four screws in the connector area( two on the rear panel and two on the bottom panel) and rotating the unit, you can change the orientation of the connector part, allowing the cables to exit from the back.
